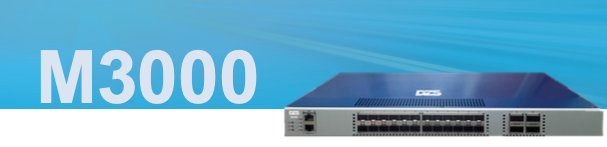

DZS M3000 Datasheet
M3000

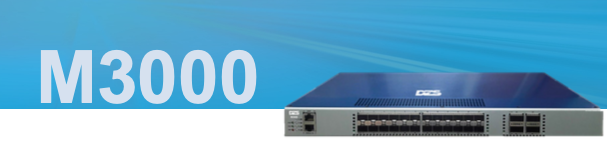

The M3000 router supports Carrier Ethernet/IP ultra-low latency switching and aggregation for mobile AnyHaul applications.
- 1 Tb/s switching capacity
- 24 ports of 1GBase-R (SFP), 10GBase-R (SFP+), or 25GBase-R (SFP28)
- 4 ports of 40GBase-R (QSFP+) or 100GBase-R (QSFP28)
- Supports multiple generations of mobile services including 3G/4G/LTE/5G
- IP/MPLS aggregation
- Advanced Class C PTP timing services for mobile clocking synchronization
- Optimized for small aggregation and remote PoP (point-of-presence) applications.
Product Specifications
Traffic Management
+ 32MB Buffer size
+ 10 unicast/multicast queues per
egress port
+ 24K Packet descriptors per packet
buffer
+ 8K/8 + 1.5k/12 per pipe Ingress
Flex Counter/Updates (SLA) + 8K/4 per pipe Egress Flex
Counters/ Updates(SLA)
Physical and Environmental
+ Dimensions (WxHxD):
440 mm x 44 mm x 418 mm
+ Operating Temperature: -4 to 140°F (-20 to 60°C)
+ Storage Temperature:
-40 to 158°F (-40 to 70°C)
+ Operating humidity:
10 to 80% non-condensing
+ AC power: 110 to 220VAC, 50/60 Hz
+ DC power: 24/48VDC
+ Maximum power consumption:
270W
+ Heat transfer:
Right (inlet) to left (outlet)
Regulation and Compliance
+ CE Mark
+ UL 62368-1
+ FCC Part 15B + VCCI
+ KC Mark
Capacity
+ Max. 1000Gb/s switching capacity base on I/O full duplex
+ Main switching block in base board with fixed I/O Interface
Interfaces
+ 24 ports for 1G (SFP), 10G (SFP+), or 25G (SFP28) optical interfaces
+ 4 ports for 40G (QSFP+) or 100G (QSFP28) optical interface
+ 1 port for RS-232 (RJ45) Interface for console debug mode
+ 1 port for 10/100/1000Base-T electrical interface for management
Resiliency
+ Redundant dual power supply unit (PSU)
+ Hot swappable for all plug-in units (PSU and FAN)
+ LED Indicator
Clock Synchronization
+ IEEE1588v2 (Class C T-TC/BC) + Synchronous Ethernet
(10/25/100G Interfaces)
Layer 2 Capabilities
+ Standard Ethernet Bridging SVL and IVL
+ Per port/VLAN MAC limit
+ Station movement control + Per port L2 protocol packet
processing up to 288K MAC entries using UFT (Unified Forwarding Table)
+ 4K active VLANs for 802.1q tagged frame
+ Port/Subnet/Protocol/MAC-based VLAN
+ VLAN translation on ingress and egress.
+ 802.1D (STP), 802.1W (RSTP), 802.1s (MSTP),
+ Link aggregation according to 802.3ad based on MAC or IP address
+ Jumbo frame 12KB
+ 802.1q /Q-in-Q tunneling
+ Link aggregation (Static and
LACP)
+ MAC filter, Max-host, Loop
detection
+ Store and Forward + L2 Multicast
Layer 3 Capabilities
+ 16K IPv4 Hosts
+ 380K IPv4 LPM
+ 64K L3 Next Hop Table
+ 4Ks IP multicast group
+ 512 VRF
+ Static routing
+ IGP: ISIS and OSPFv2/v3 + BGPv4
+ TWAMP
+ Virtual Router Redundancy
Protocol (VRRP)
+ Per L3 interface L3 protocol packet
processing
+ 802.1q /Q-in-Q tunneling
