DZS M4000 Datasheet

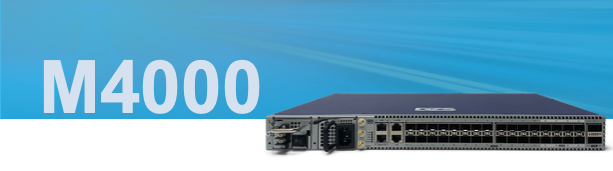

M4000
The M4000 is a flexible multi-purpose router for mobile AnyHaul applications.
- SRv6/SR-MPLS based Router+ 32 ports of 10/25GE (SFP+/SFP28)
- 2 ports of 100GBase-R(QSFP28)+ 360Gb/s switching capacity
- Operates as Timing Grand Master with integrated GNSS receiver
- Redundant dual power interface
- Hot swappable fan interface
Product Specifications
Base Features
+ 1RU design
+ Redundant dual power supply modules + Hot swappable Fan and power modules + 360Gbps switching capacity
Interfaces
+ 32 ports for 10/25G (SFP+/SFP28)
+ 2 ports for 40/100G (QSFP+/QSFP28) + 1 port RS-232(RJ45) for console debug + 1 port GE out-of-band Management
+ 1 port GNSS Antenna Input
+ 1 port TOD, 1-port 1PPS, 1-port 10MHz
Timing Interfaces
Clock Synchronization
+ IEEE1588v2
+ Integrated Grand Master with internal
GNSS receiver
+ Class C T-BC/TC
+ Synchronous Ethernet + TOD, PPS, 10 MHz I/O
Physical and Environmental
+ Dimensions (WxHxD):
+ 444 mm x 44 mm x 250 mm + 19-inch rackmount, 1RU
+ Operating Temperature: -40 to 149°F (-40 to 65°C)
+ Storage Temperature:
-40 to 158°F (-40 to 70°C)
+ Operating humidity:
5 to 95% non-condensing
+ AC power: 110 to 220VAC, 50/60 Hz + DC power: 48VDC
+ Maximum power consumption:
AC: 200W DC: 190W
Layer 2 Capabilities
+ Standard Ethernet Bridging SVL/IVL
+ Per port/VLAN MAC limit
+ Per port L2 protocol packet processing + Unified Forwarding Table
+ 4K active VLANs for 802.1q tagged frame
+ Port/Subnet/Protocol/MAC-based VLAN + VLAN translation on ingress and egress.
+ 802.1D (STP), 802.1W (RSTP), 802.1s (MSTP)
+ LACP, MC-LAG
+ Jumbo frames up to 9KB
+ 802.1q /Q-in-Q tunneling
+ MAC filter, Max-host, Loop detection
+ L2 Multicast
+ Storm control
+ FlexE Capable (Future)
Layer 3 Capabilities
+ IPv4/IPv6 Static & Dynamic routing + IS-IS, OSPFv2/v3, BGPv4
+ VRRP
+ Policing-based routing (PBR)
+ BFD
+ SRv6
+ EVPN-SRV6 (L2/L3 E-Line, E-LAN) + TI-LFA-FRR
Quality of Service
+ Deep IP ACL including PBR + Hierarchical QOS
+ DWRR/DRR/WRR
+ Rate-shaping at egress
+ Congestion notification (802.1Qau)
Security
+ Storm control for broadcast, multicast and unknown unicast packets
+ Out-of-band management + Secure Shell (SSH)
Management
+ NETCONF/YANG + Serial/Telnet (CLI) + SNMPv1/v2/v3
+ RMON
+ RADIUS/TACACS+
+ DHCP client, relay
+ SYSLOG
+ Link layer discovery protocol (LLDP) + Software Download/Upgrade
OAM / Protection
+ Ethernet OAM (LMEP/RMEP) + Y.1731/802.1ag
+ Y.1564
+ TWAMP Reflect
